Know Your PCS: How to Detail Power Control System Interconnection in SolarAPP+

The Problem

Panel capacity is one of the most common obstacles in residential solar and storage installations. When a main service panel is already near its limit, adding the output of an inverter and energy storage system can push it beyond what the busbar is rated to handle — which typically means a panel upgrade, added cost, and project delays.

A Power Control System (PCS) — an energy management system that regulates power to a busbar or conductor — offers a code-compliant path to interconnection without a panel upgrade. But using PCS in SolarAPP+ requires knowing what type your equipment supports, and entering it correctly in the tool. Getting it wrong generates an error that stops your application before it starts.

This post walks you through both.

What SolarAPP+ Supports

SolarAPP+ can qualify both single-source and multisource power control systems that perform Power Export Limiting functionality. For multisource systems, SolarAPP+ recognizes two types: Power Export Limiting (PEL) and Busbar Overload Control (BBOC). While some equipment supports multiple PCS functions, SolarAPP+ currently recognizes only one type per equipment model number.

PCS functionality is typically sourced from the listing of the Backup Initiation Device (BID) — though some inverters can also perform this function. Of the two multisource types, BBOC is the most prevalent, because it allows the greatest use of onsite renewables without triggering a main panel upgrade.

Single-Source PCS

A single-source PCS (SSOC) provides overload protective functions for a single source of supply — such as the area electric power system (EPS) — through load management. It works alongside passive protective devices, like branch-circuit-rated overcurrent protective devices (OCPDs), to prevent overload conditions. In the event of a PCS failure, those OCPDs provide the fallback protection.

In SolarAPP+, single-source PCS is used at the inverter or Energy Storage System (ESS) level. When this method is applied, the tool will ask:

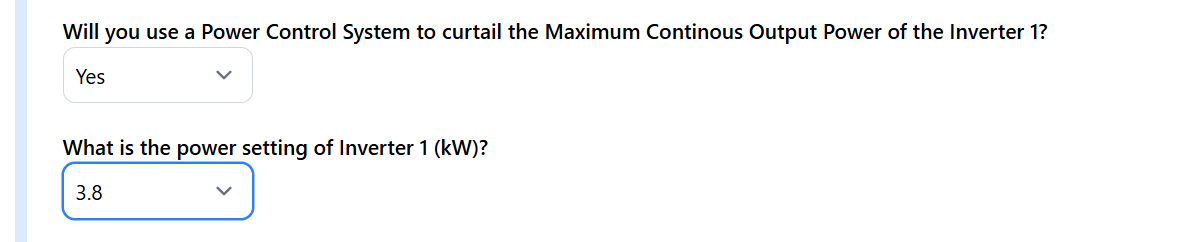

Will you use a Power Control System to curtail the Maximum Continuous Output Power of the Inverter?

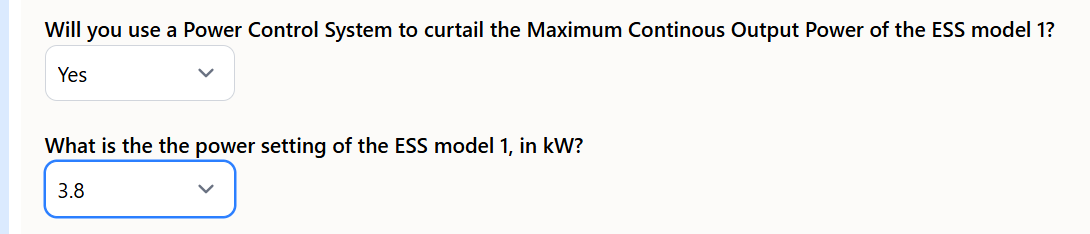

Select Yes, then enter the power setting in kW. The same prompt appears for the ESS if one is included.

When single-source PCS is applied, an inspection checklist item will display confirming the inverter’s curtailed power setting.

Multisource PCS — Busbar Overload Control (BBOC)

A multisource PCS addresses overload conditions on systems supplied by more than one source and has active control over more than one source. Unlike single-source systems, a multisource PCS cannot rely solely on passive protective devices to prevent overload if the PCS fails — the control function itself is what keeps the system safe.

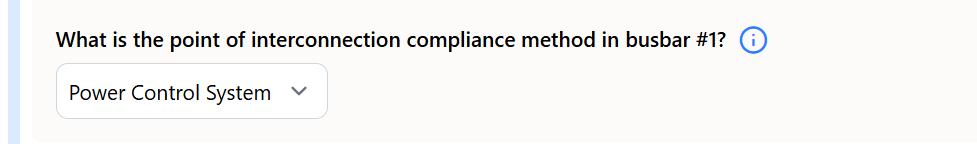

In SolarAPP+, the installer selects Power Control System as the point of interconnection compliance method at the busbar level.

When this method is selected, current transformers (CTs) must be placed at the top and bottom of the busbar to monitor load and activate the PCS to curtail output when needed. SolarAPP+ recognizes only one busbar per system as the PCS-controlled busbar.

Because these systems serve continuous duty loads, the PCS ampacity setting must be set to 80% of the controlled busbar’s OCPD rating.

Example: For a 200A main service breaker, the PCS ampacity setting should be: 200A × 80% = 160A

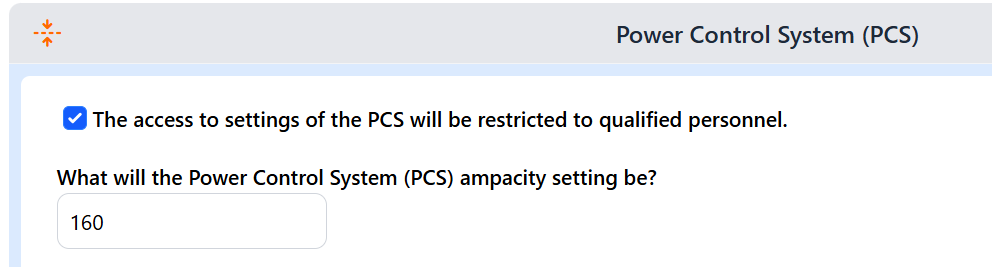

The tool will prompt you to confirm that PCS access is restricted to qualified personnel and to enter the ampacity setting.

Two inspection checklist items are generated when multisource BBOC PCS is used:

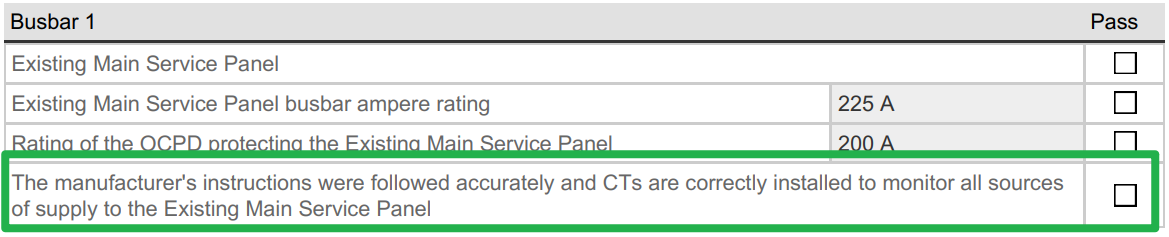

The first confirms that the manufacturer’s installation instructions were followed and that CTs are correctly installed to monitor all sources of supply to the main service panel.

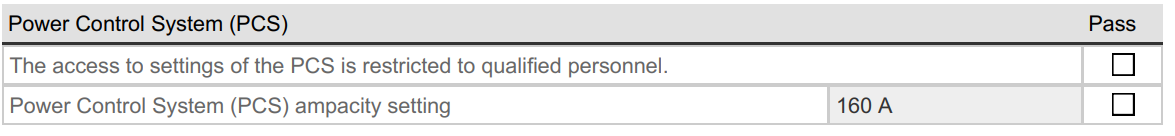

The second confirms the PCS access restriction and displays the programmed ampacity setting.

Multisource PCS — Power Export Limiting (PEL)

For equipment using the multisource PEL function, no additional steps are required from the installer beyond selecting Power Control System as the interconnection compliance method at the busbar. SolarAPP+ references the equipment database to identify the PEL flavor automatically, then calculates the maximum output current using the rating of the OCPD protecting the equipment — OCPD rating × 0.8 — and uses that result to evaluate compliance with NEC Article 705, applying the 120% rule at the connected busbar.

One practical consequence of this approach is worth noting: SolarAPP+ will allow the equipment to be protected by an OCPD smaller than its nameplate rating. Because the tool works from the actual OCPD installed rather than the inverter’s maximum rated output, right-sizing the OCPD for the PEL setting is both permitted and expected.

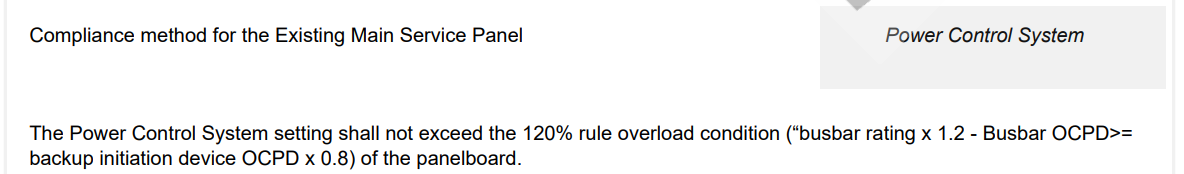

The inspection checklist reflects the PEL compliance method and confirms the overload condition constraint, displaying the formula used to verify the system does not exceed the 120% rule:

Busbar rating × 1.2 − Busbar OCPD ≥ Backup Initiation Device OCPD × 0.8

What’s Next?

If you receive error R1151 when selecting Power Control System as your interconnection method, it means SolarAPP+ was unable to confirm that your selected equipment supports PCS — either because the device doesn’t support it, or because it hasn’t yet been documented in the SolarAPP+ database.

If your equipment does support PCS, you can submit manufacturer documentation for review through the R1151 support article. Getting that documentation into the database helps every installer using that equipment going forward.

If you need help completing your application, SolarAPP+ Assist offers one-on-one support with a technician.
