How do I find my Utility Service Feed Rating?

Application Question:

What is the Utility service feed rated for (Amps)?

Where do I find this information on the plan set?

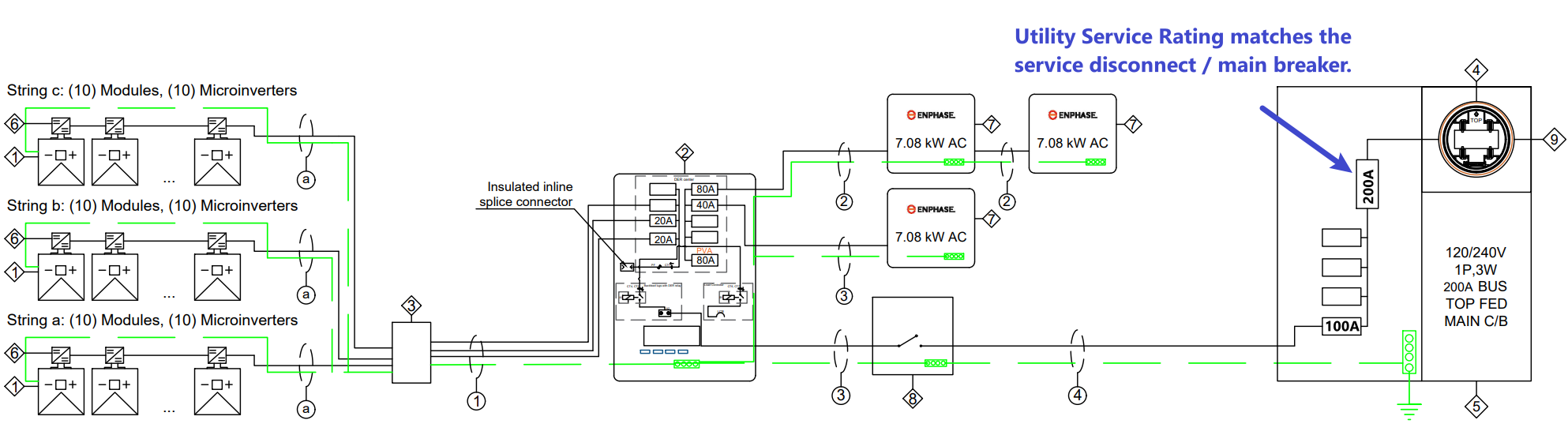

The utility service feed rating for the site will be the largest amount of power the service disconnect or main breaker will allow to the premises wiring.  In the below project, the utility service feed rating / service disconnect / main breaker is 200A.

What error message would I receive if I entered this incorrectly?

Typically, you'll receive the following error if the utility service feed rating is larger than your meter collar / backup switch / meter-mounted Backup Initiation Device (BID):

R352: The rating of your meter mounted backup initiation device is less than your service rating, this is not code compliant, please adjust.
