Example Submission - String inverter with ESS and Utility meter / Disconnect separate

The intent of this Article is to walk a new installer through how to input an example String Inverter with ESS that has the Utility meter and main service disconnect separate into SolarAPP+.

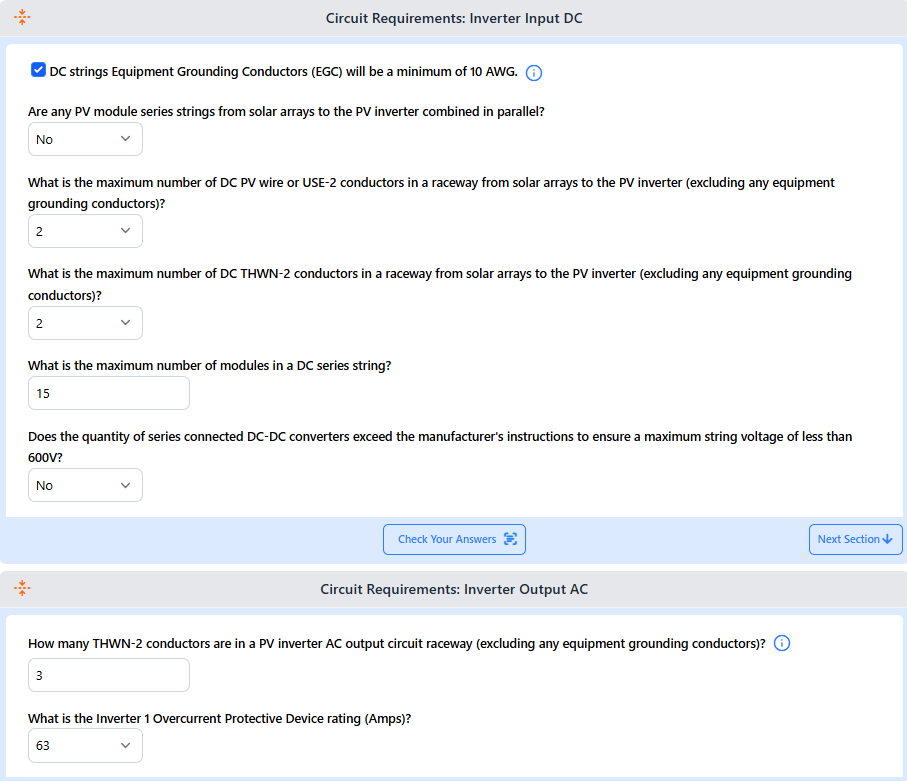

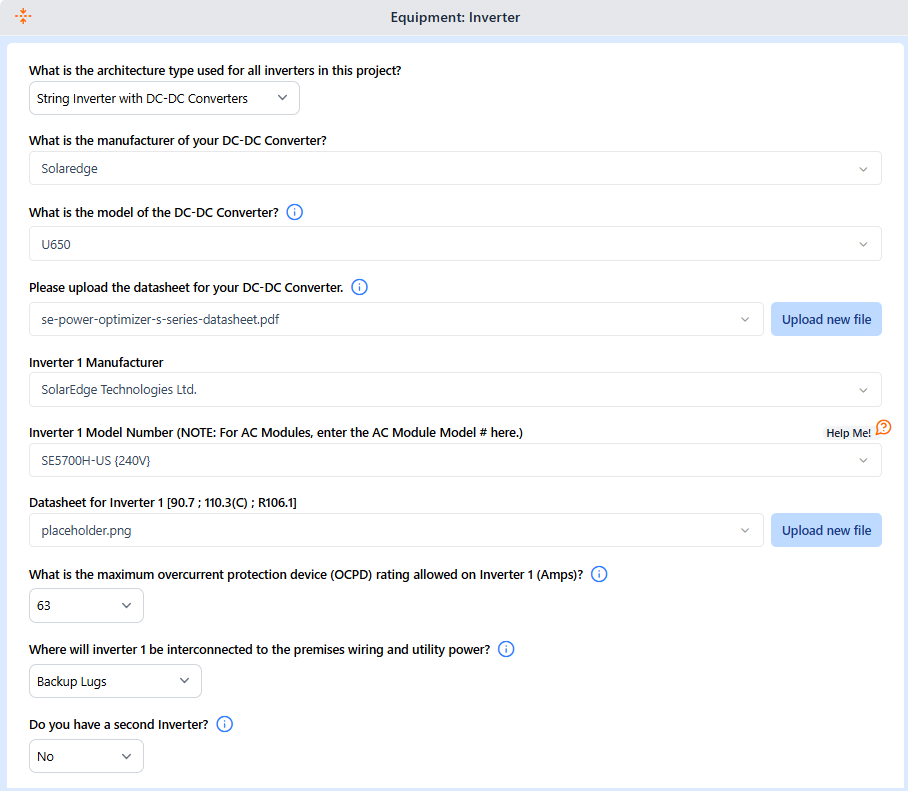

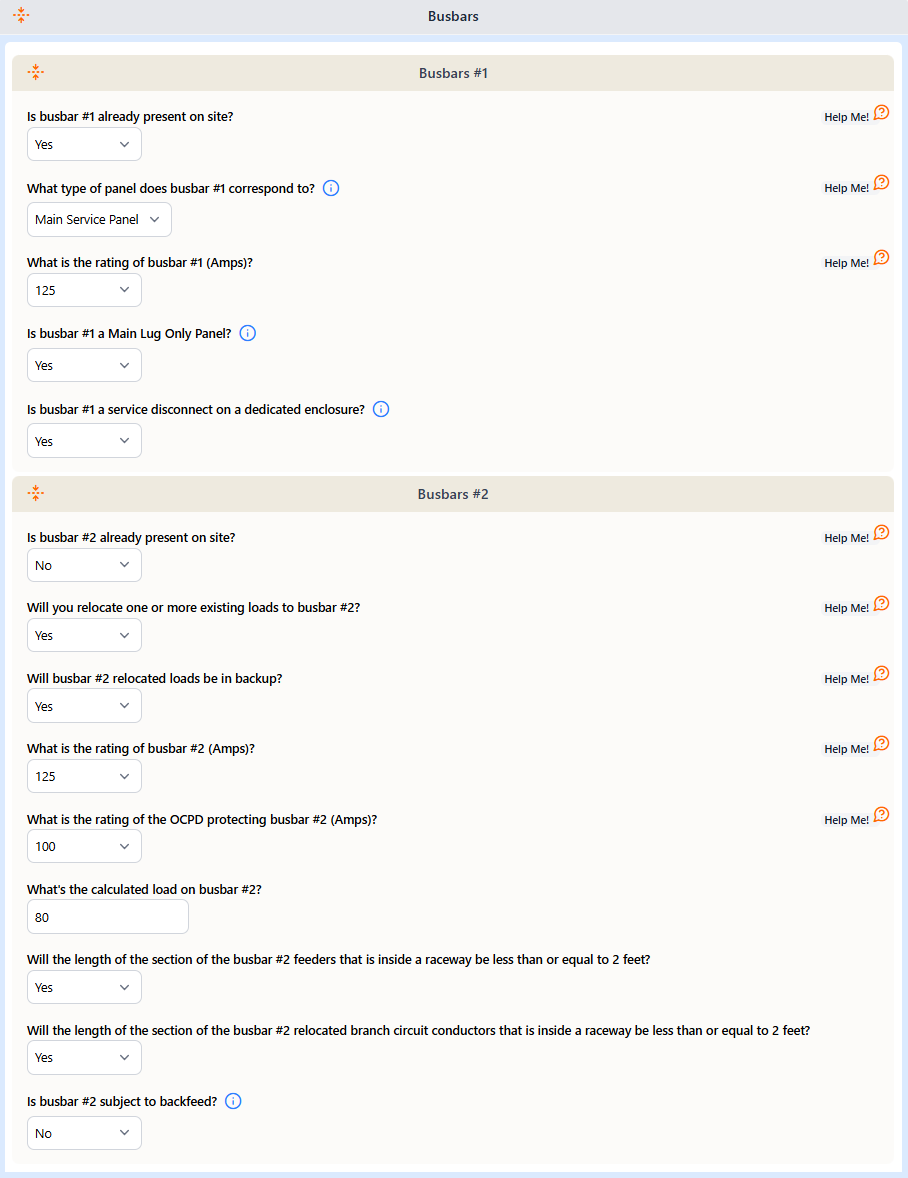

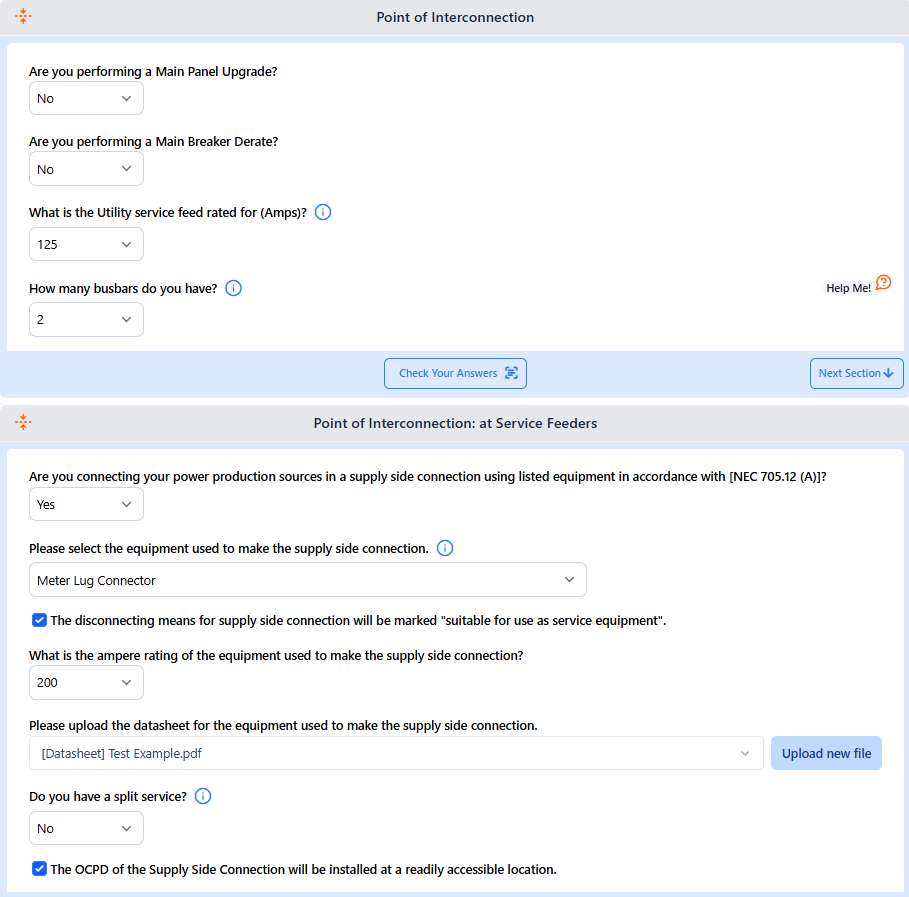

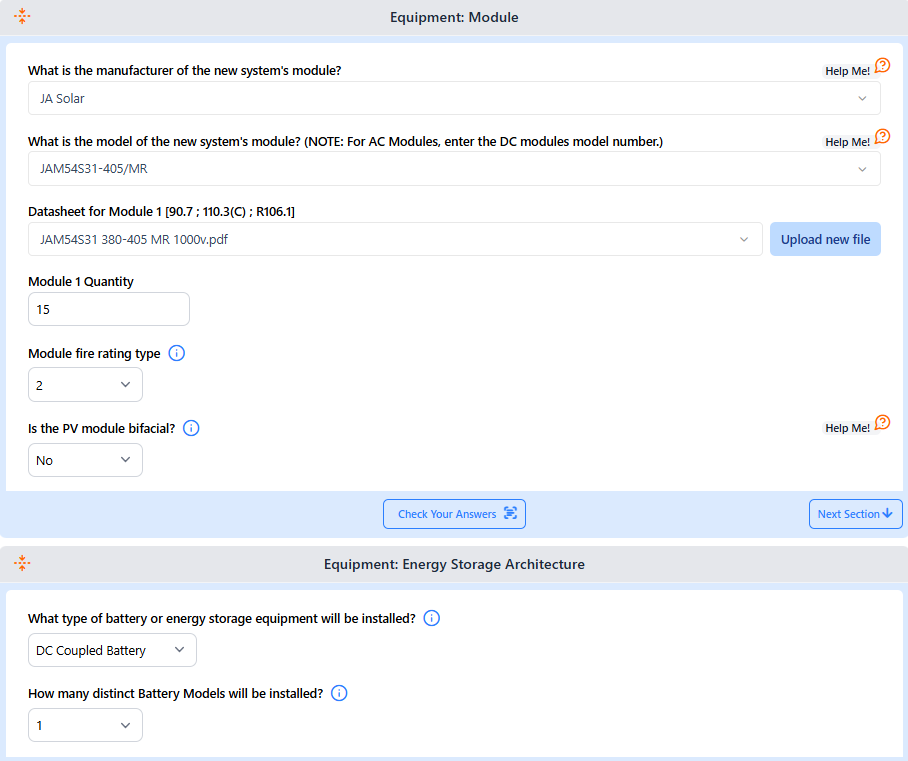

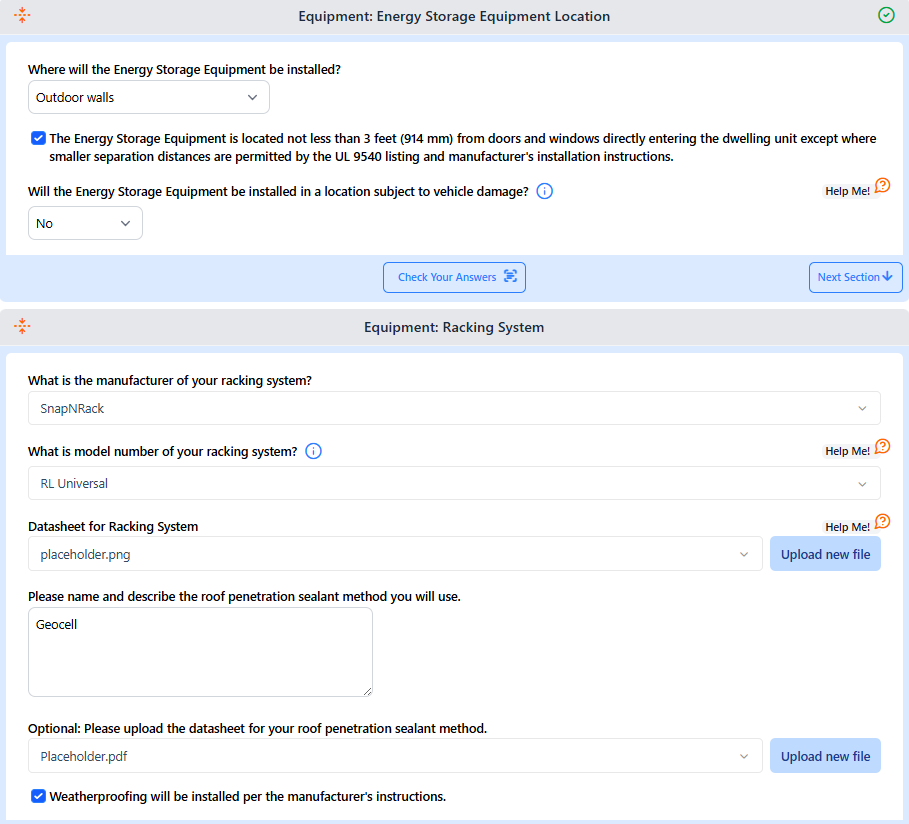

You can expand the images above and below by downloading the image or opening the image in a new tab as shown below:

What you should see at the end of your application once the system is checked:

The recommendations provided here are intended for informational purposes only and are offered in good faith based on the available information of the example above. It is the responsibility of a qualified person with the skills and knowledge to ensure full compliance with local codes and standards.
