Received an Error Message: R72 UL 2703 Racking and Module Combination

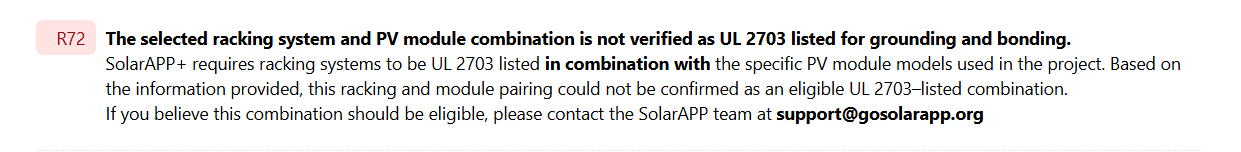

Error Message Received:
Why am I seeing this?:
This error may be caused due to the selected racking and module combination not being UL 2703 listed for grounding and bonding. UL 2703 is the safety standard that verifies solar racking systems and modules are tested together to ensure proper electrical bonding, grounding, and overall system safety. This error indicates SolarAPP+ couldn't verify that your solar panels and the racking system are certified to work safely together, or it could be that the combination has not yet been updated in the SolarAPP+ database.
Example:
For example, if a project uses JA Solar JAM54D41-425/MB modules with the Unirac NXT UMOUNT racking system and the R72 error appears during application review, you will need to provide documentation confirming that the two are compatible under UL 2703.
Potential Solution:
To confirm if the combination is approved under UL 2703, you can reference the racking installation instructions where a list of approved modules can be found.

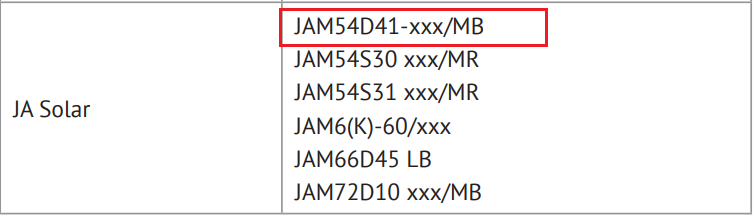

For this example, provided below is a snippet of the Unirac NXT UMOUNT racking installation instructions showing the module model is compatible with the racking.
If you can confirm that the selected modules and racking are compatible and the R72 error appears during application review, it may indicate that the SolarAPP+ database has not yet been updated with this combination. To request an update, please complete this form.

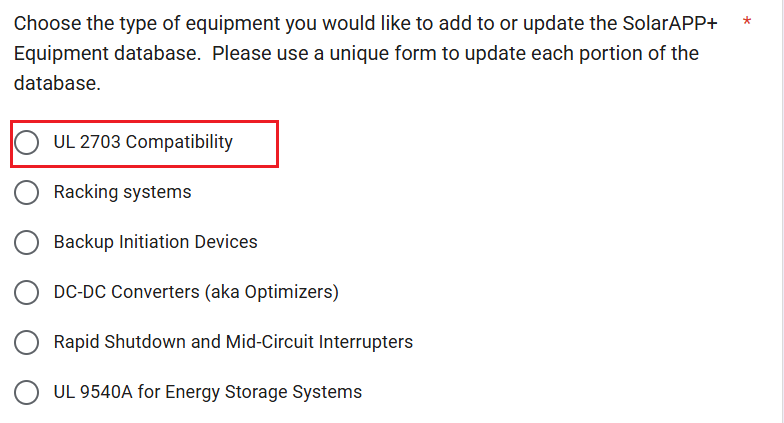

When completing the form, select the “UL 2703 Compatibility” section and ensure all required fields are filled out. Please note, processing and review times may vary based on the completeness of the form. Please provide all necessary and accurate documentation to avoid any delays in processing.
If you are unable to confirm that the selected modules and racking are compliant together under UL 2703, you’ll need to select a combination that is compliant.
Support:
If you are still running into issues and you would like additional support please reach out to support@gosolarapp.org
Or if you would like to schedule a free 1-1 SolarAPP+ Assist live video support through Google meet, an appointment can be booked using this link.
